DaisyDiff

Overview

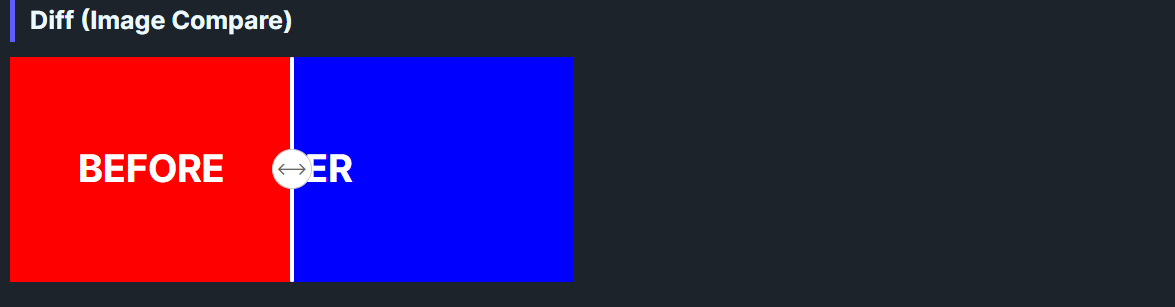

DaisyDiff is a before/after comparison control with a draggable grip. It overlays Image1 atop Image2 and clips the top layer based on Offset (0–100%). Users can drag the grip to reveal more or less of each side; layout adjusts automatically on resize. Supports both horizontal (left-right) and vertical (top-bottom) split orientations.

Properties

Property	Description
`Image1`	Content shown on top (clipped). Accepts any UI (images, borders, etc.).
`Image2`	Content shown underneath, full size.
`Offset` (0–100, default 50)	Percentage revealed for `Image1`; also sets grip position.
`Orientation` (Horizontal, default Horizontal)	Split direction: `Horizontal` (left-right) or `Vertical` (top-bottom).

Quick Examples

<!-- Simple color comparison (horizontal) -->
<controls:DaisyDiff Width="450" Height="180">
    <controls:DaisyDiff.Image1>
        <Border Background="#FF5F56">
            <TextBlock Text="BEFORE" Foreground="White" FontWeight="Bold"
                       HorizontalAlignment="Center" VerticalAlignment="Center" />
        </Border>
    </controls:DaisyDiff.Image1>
    <controls:DaisyDiff.Image2>
        <Border Background="#27C93F">
            <TextBlock Text="AFTER" Foreground="White" FontWeight="Bold"
                       HorizontalAlignment="Center" VerticalAlignment="Center" />
        </Border>
    </controls:DaisyDiff.Image2>
</controls:DaisyDiff>

<!-- Vertical orientation (top-bottom split) -->
<controls:DaisyDiff Width="300" Height="250" Orientation="Vertical">
    <controls:DaisyDiff.Image1>
        <Border Background="#6366F1">
            <TextBlock Text="TOP" Foreground="White" FontWeight="Bold"
                       HorizontalAlignment="Center" VerticalAlignment="Center" />
        </Border>
    </controls:DaisyDiff.Image1>
    <controls:DaisyDiff.Image2>
        <Border Background="#10B981">
            <TextBlock Text="BOTTOM" Foreground="White" FontWeight="Bold"
                       HorizontalAlignment="Center" VerticalAlignment="Center" />
        </Border>
    </controls:DaisyDiff.Image2>
</controls:DaisyDiff>

<!-- Image comparison with custom start offset -->
<controls:DaisyDiff Width="500" Height="300" Offset="30">
    <controls:DaisyDiff.Image1>
        <Image Source="ms-appx:///Flowery.Uno.Gallery/Assets/photo-before.jpg" Stretch="UniformToFill" />
    </controls:DaisyDiff.Image1>
    <controls:DaisyDiff.Image2>
        <Image Source="ms-appx:///Flowery.Uno.Gallery/Assets/photo-after.jpg" Stretch="UniformToFill" />
    </controls:DaisyDiff.Image2>
</controls:DaisyDiff>

Tips & Best Practices

Keep Image1 and Image2 the same aspect ratio to avoid jumpy reveals.
Set explicit Width/Height (or parent constraints) so the grip and clipping stay predictable.
Initialize Offset to highlight the more important state first (e.g., 70 to emphasize the "after").
Use Orientation="Vertical" for tall images or top/bottom comparisons (before/after in vertical layouts).
You can host any content (charts, text, borders), not just images - use it for code diffs, design comps, or map overlays.
The grip uses a transparent drag area with a handle; ensure background contrast so the handle remains visible.
Vertical orientation displays horizontal grip indicator (⋯) while horizontal shows vertical (⋮).
