DaisyScreenColorPicker

Overview

DaisyScreenColorPicker is an eyedropper tool that allows picking colors from anywhere on the screen using a click-and-drag interaction. Unlike traditional color pickers that require clicking to start and clicking again to select, this control uses a more intuitive drag gesture: click and hold to start, drag anywhere on screen while watching the live color preview, then release to capture the color.

Interaction Model

1. Click and hold the left mouse button on the control

2. Drag the cursor anywhere on screen (even outside the application window)

3. Watch the live color preview update as you move

4. Release the mouse button to capture the color at the cursor position

This interaction model is similar to how eyedropper tools work in professional design software like Photoshop or Figma.

• Release the mouse button outside the control while not over a desired color
• Press Escape while dragging
• If pointer capture is lost (e.g., window loses focus), picking is automatically cancelled

Properties

Events

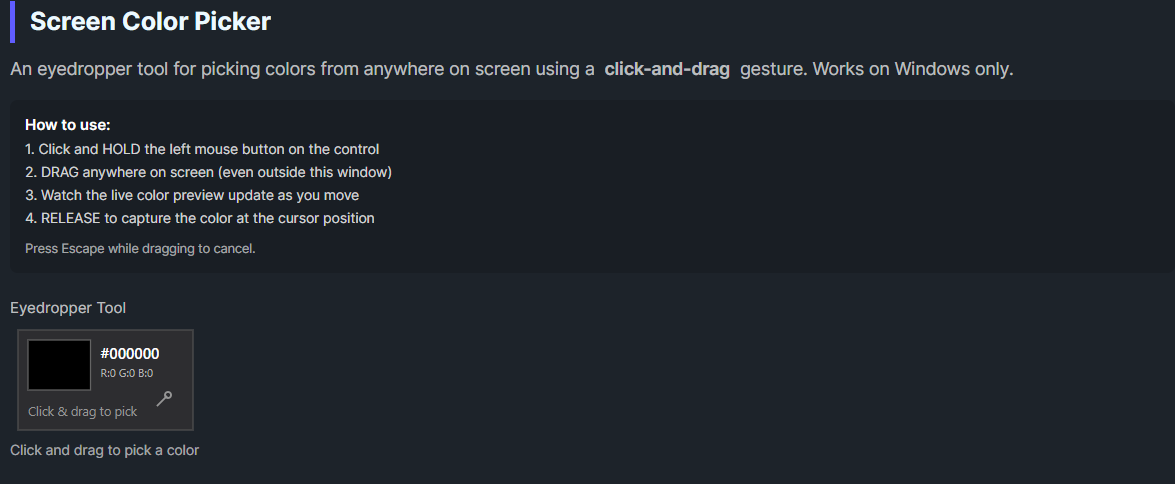

Visual Display

The control displays a compact panel (140×80 pixels) showing:

• Color swatch - Large preview of the current/preview color with checkerboard for transparency
• Hex value - Color in #RRGGBB format
• RGB values - Individual R, G, B component values
• Status text - "Click & drag to pick" or "Release to pick" during capture
• Eyedropper icon - Visual indicator when not capturing
• Green border - Indicates active capture mode

Platform Support

The control uses Windows-specific P/Invoke calls (GetCursorPos, GetDC, GetPixel) for screen color capture. On non-Windows platforms, the drag interaction works but the color value won't update.

Quick Examples

<!-- Basic eyedropper -->
<colorpicker:DaisyScreenColorPicker
    Color="{Binding SelectedColor, Mode=TwoWay}" />

<!-- With callback -->
<colorpicker:DaisyScreenColorPicker
    OnColorChanged="{Binding OnScreenColorPicked}" />

<!-- In a color picker toolbar -->
<StackPanel Orientation="Horizontal" Spacing="8">
    <colorpicker:DaisyScreenColorPicker x:Name="Eyedropper" />
    <TextBlock Text="Drag to pick a color from screen"
               VerticalAlignment="Center"
               Opacity="0.7" />
</StackPanel>

Events and Callbacks

Event-Based

picker.ColorChanged += (sender, e) =>
{
    Console.WriteLine($"Captured: {e.Color}");
    // e.Color contains the picked color
};

picker.PickingCompleted += (sender, e) =>
{
    Console.WriteLine("Color picking finished");
    // Good place to close dialogs or apply the color
};

picker.PickingCancelled += (sender, e) =>
{
    Console.WriteLine("Color picking cancelled");
    // User cancelled - restore previous state if needed
};

Callback-Based

var picker = new DaisyScreenColorPicker
{
    OnColorChanged = color =>
    {
        Debug.WriteLine($"Picked: #{color.R:X2}{color.G:X2}{color.B:X2}");
        SelectedColor = color;
    }
};

Code-Behind Usage

// Create picker
var picker = new DaisyScreenColorPicker();

// Handle successful pick
picker.ColorChanged += (s, e) =>
{
    var capturedColor = e.Color;
    ApplyColor(capturedColor);
};

// Handle cancellation
picker.PickingCancelled += (s, e) =>
{
    // User cancelled - no action needed
};

// Read the current color
Color currentColor = picker.Color;

Tips & Best Practices

• Explain the interaction to users - the click-and-drag model may be unfamiliar
• The control shows a live preview of the color under the cursor while dragging
• Hex and RGB values update in real-time during drag
• Works best on Windows - other platforms have limited color capture support
• Combine with DaisyColorEditor or DaisyColorGrid for a complete color picker interface
• The IsCapturing property can be used to conditionally show/hide UI elements
• Use PickingCompleted event to trigger actions after successful color selection

Comparison with Traditional Eyedroppers

Acknowledgments

This control is part of the Flowery.NET color picker suite, inspired by the Cyotek ColorPicker library (MIT License).
