DaisyContributionGraph

Overview

DaisyContributionGraph

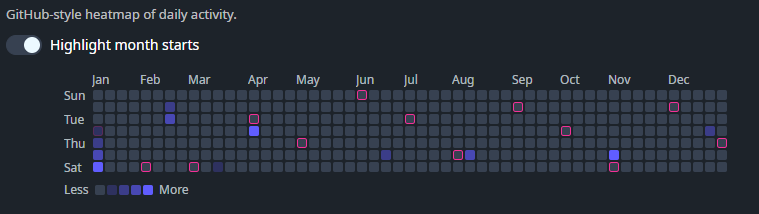

DaisyContributionGraph is a GitHub-style contribution heatmap graph (7 rows × 53 weeks). Provide day entries via Contributions, and the control renders a compact year overview with optional month/day labels, hover tooltips, and a “Less/More” legend.

Data Model

Each entry is a DaisyContributionDay:

Property Description
Date The calendar day (date portion is used).
Count Numeric count shown in the tooltip text.
Level Intensity level (clamped to 0–4). Level drives the cell's visual intensity.

Properties

Property Description
Contributions (IEnumerable?) Data points used to populate the graph. Days not present render as level 0 / count 0.
Year (int) Which year to display (default: current year).
StartDayOfWeek (DayOfWeek) Which day is shown as the first row (default: Sunday).
ShowLegend (bool) Shows/hides the “Less/More” legend (default: true).
ShowToolTips (bool) Enables/disables per-cell tooltip text (default: true).
ShowMonthLabels (bool) Shows/hides month labels above the grid (default: true).
ShowDayLabels (bool) Shows/hides day labels on the left (default: true).
HighlightMonthStartBorders (bool) When true, cells that represent the 1st of a month get a secondary-colored border (default: false).
CellSize (double) Cell size in pixels (default: 10).
CellMargin (Thickness) Margin around each cell (default: 1).
CellCornerRadius (CornerRadius) Corner radius for each cell (default: 2).

Styling Notes

Cells are rendered as Border elements with Classes="daisy-contribution-cell" and Tag set to the level (0–4). You can override the color/intensity by adding styles for selectors like:

<Style Selector="Border.daisy-contribution-cell[Tag=4]">
    <Setter Property="Background" Value="{DynamicResource DaisySuccessBrush}" />
    <Setter Property="Opacity" Value="1" />
</Style>

Quick Examples

<!-- Basic graph with inline sample data -->
<controls:DaisyContributionGraph Year="2025" Width="720">
    <controls:DaisyContributionGraph.Contributions>
        <x:Array Type="{x:Type controls:DaisyContributionDay}">
            <controls:DaisyContributionDay Date="2025-01-01" Count="1" Level="1" />
            <controls:DaisyContributionDay Date="2025-01-02" Count="3" Level="2" />
            <controls:DaisyContributionDay Date="2025-01-03" Count="7" Level="3" />
            <controls:DaisyContributionDay Date="2025-01-04" Count="11" Level="4" />
        </x:Array>
    </controls:DaisyContributionGraph.Contributions>
</controls:DaisyContributionGraph>

<!-- Compact, labels off -->
<controls:DaisyContributionGraph Year="2025"
                                ShowLegend="False"
                                ShowMonthLabels="False"
                                ShowDayLabels="False"
                                CellSize="8"
                                CellMargin="1" />

Tips & Best Practices
