DaisyColorWheel

Overview

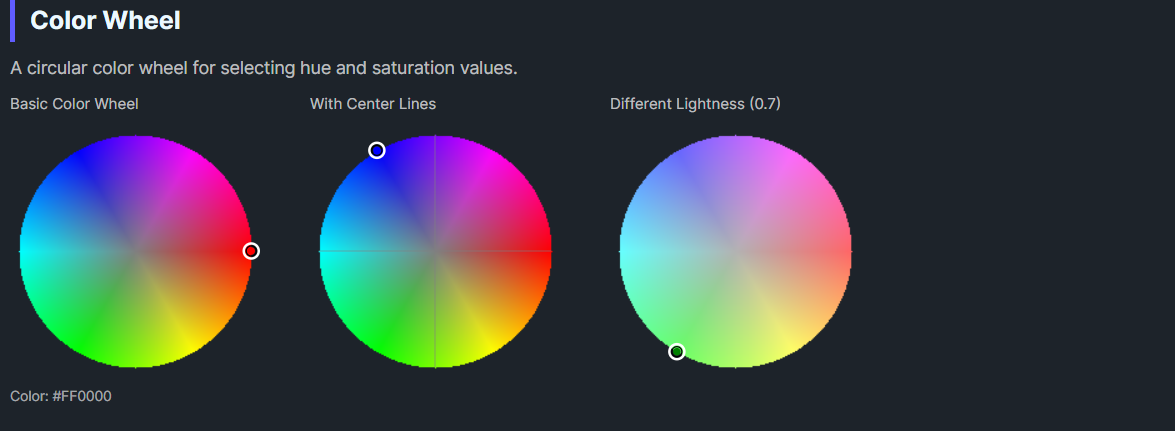

DaisyColorWheel is a circular color wheel control for selecting hue and saturation values in the HSL color space. It renders a full-spectrum color wheel with a draggable selection marker, allowing intuitive color picking through mouse interaction. The wheel displays colors at a configurable lightness level.

Properties

Property	Type	Default	Description
`Color`	`Color`	`Red`	The selected RGB color
`HslColor`	`HslColor`	`H:0, S:1, L:0.5`	The HSL representation of the color
`Lightness`	`double`	`0.5`	Lightness value (0-1) for the wheel display
`SelectionSize`	`double`	`10`	Size of the selection marker circle
`SelectionOutlineColor`	`Color`	`White`	Color of the selection marker outline
`ShowCenterLines`	`bool`	`false`	Whether to show center crosshairs
`ColorStep`	`int`	`4`	Rendering quality (lower = smoother, higher = faster)
`OnColorChanged`	`Action?`	`null`	Optional callback invoked when color changes

How It Works

The color wheel maps:

Angle (0-360°) → Hue (color around the wheel)
Distance from center (0 to radius) → Saturation (center = gray, edge = vivid)
Lightness is controlled separately via the Lightness property

Clicking or dragging on the wheel updates both the Color and HslColor properties.

Events and Callbacks

Event-Based

colorWheel.ColorChanged += (sender, e) =>
{
    // e.Color contains the new color
    UpdatePreview(e.Color);
};

Callback-Based

<colorpicker:DaisyColorWheel
    OnColorChanged="{Binding HandleWheelColorChanged}" />

// Direct assignment
var wheel = new DaisyColorWheel
{
    OnColorChanged = color => SelectedColor = color
};

Quick Examples

<!-- Basic color wheel -->
<colorpicker:DaisyColorWheel
    Width="200"
    Height="200"
    Color="{Binding SelectedColor, Mode=TwoWay}" />

<!-- With lightness control -->
<StackPanel Spacing="8">
    <colorpicker:DaisyColorWheel
        x:Name="wheel"
        Width="200"
        Height="200"
        Lightness="{Binding #lightnessSlider.Value}" />

    <Slider
        x:Name="lightnessSlider"
        Minimum="0"
        Maximum="1"
        Value="0.5" />
</StackPanel>

<!-- High quality rendering -->
<colorpicker:DaisyColorWheel
    ColorStep="1"
    Width="300"
    Height="300" />

<!-- With center crosshairs -->
<colorpicker:DaisyColorWheel
    ShowCenterLines="True"
    SelectionSize="12"
    SelectionOutlineColor="Black" />

<!-- With callback -->
<colorpicker:DaisyColorWheel
    OnColorChanged="{Binding OnWheelColorSelected}" />

HslColor Struct

The HslColor struct represents colors in HSL space:

Property	Type	Range	Description
`H`	`double`	0-359	Hue angle in degrees
`S`	`double`	0-1	Saturation (0 = gray, 1 = vivid)
`L`	`double`	0-1	Lightness (0 = black, 0.5 = pure, 1 = white)
`A`	`int`	0-255	Alpha/transparency

// Create from HSL values
var hsl = new HslColor(180, 0.8, 0.5); // Cyan-ish

// Create from RGB Color
var hsl = new HslColor(Colors.Red);

// Convert to RGB
Color rgb = hsl.ToRgbColor();

// Implicit conversions
Color color = hsl;           // HSL to Color
HslColor hsl2 = Colors.Blue; // Color to HSL

Tips & Best Practices

Pair with a lightness slider (DaisyColorSlider with Channel="Lightness") for complete HSL control.
Use ColorStep="1" for smooth gradients on larger wheels; use higher values for better performance.
The wheel automatically maintains the current Lightness when selecting colors.
Use ShowCenterLines="True" to help users find the exact center (gray/neutral colors).
For dark themes, consider setting SelectionOutlineColor to a lighter color for visibility.

Acknowledgments

This control is part of the Flowery.NET color picker suite, inspired by the Cyotek ColorPicker library (MIT License).
