DaisyColorGrid

Overview

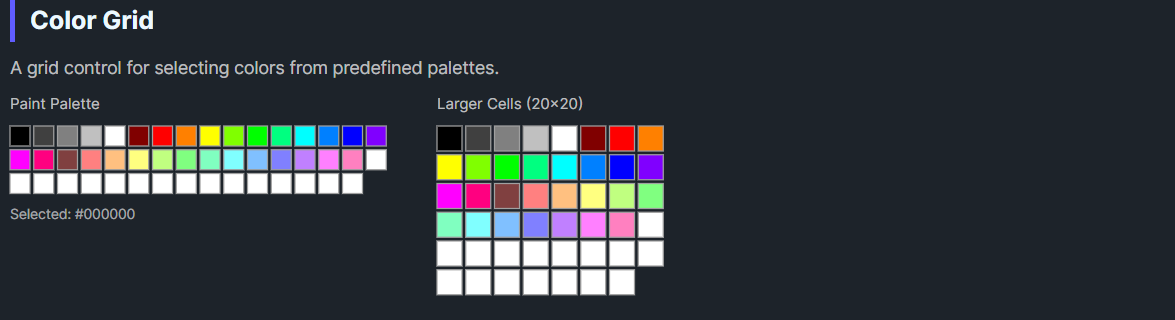

DaisyColorGrid is a grid control for displaying and selecting colors from predefined or custom palettes. It supports multiple built-in palettes (Named Colors, Office 2010, Paint, Web Safe), configurable cell sizes, and a separate custom colors section for user-defined colors.

Properties

Property	Type	Default	Description
`Color`	`Color`	`Black`	The currently selected color
`ColorIndex`	`int`	`-1`	Index of the selected color in the palette
`Palette`	`ColorCollection?`	`null`	The main color collection to display
`CustomColors`	`ColorCollection?`	`null`	Custom colors collection (shown separately)
`ShowCustomColors`	`bool`	`true`	Whether to show the custom colors section
`CellSize`	`Size`	`16x16`	Size of each color cell
`Spacing`	`Size`	`3x3`	Spacing between cells
`Columns`	`int`	`16`	Number of columns in the grid
`CellBorderColor`	`Color`	`Gray`	Border color for cells
`SelectionBorderColor`	`Color`	`Blue`	Border color for selected cell
`AutoAddColors`	`bool`	`true`	Auto-add selected colors to custom colors
`OnColorChanged`	`Action?`	`null`	Optional callback invoked when color changes

Built-in Palettes

The ColorCollection class provides several predefined palettes:

Palette	Method	Colors	Description
Named Colors	`CreateNamedColors()`	140+	All CSS/HTML named colors
Office 2010	`CreateOffice2010()`	70	Microsoft Office 2010 theme colors
Paint	`CreatePaint()`	48	MS Paint default palette
Web Safe	`CreateWebSafe()`	216	Web-safe 216-color palette
Grayscale	`CreateGrayscale(n)`	n	Custom grayscale gradient

// Create palettes
var namedColors = ColorCollection.CreateNamedColors();
var office = ColorCollection.CreateOffice2010();
var paint = ColorCollection.CreatePaint();
var webSafe = ColorCollection.CreateWebSafe();
var grays = ColorCollection.CreateGrayscale(16);

Events and Callbacks

Event-Based

grid.ColorChanged += (sender, e) =>
{
    Console.WriteLine($"Selected: {e.Color}");
};

Callback-Based

<colorpicker:DaisyColorGrid
    OnColorChanged="{Binding HandleGridColorChanged}" />

var grid = new DaisyColorGrid
{
    Palette = ColorCollection.CreateOffice2010(),
    OnColorChanged = color => SelectedColor = color
};

Quick Examples

<!-- Basic grid with Office 2010 palette -->
<colorpicker:DaisyColorGrid
    Palette="{x:Static colorpicker:ColorCollection.Office2010}"
    Color="{Binding SelectedColor, Mode=TwoWay}" />

<!-- Named colors with custom cell size -->
<colorpicker:DaisyColorGrid
    Palette="{x:Static colorpicker:ColorCollection.NamedColors}"
    CellSize="20,20"
    Spacing="2,2"
    Columns="20" />

<!-- With custom colors section -->
<colorpicker:DaisyColorGrid
    Palette="{Binding MainPalette}"
    CustomColors="{Binding UserCustomColors}"
    ShowCustomColors="True"
    AutoAddColors="True" />

<!-- Compact paint palette -->
<colorpicker:DaisyColorGrid
    Palette="{x:Static colorpicker:ColorCollection.Paint}"
    CellSize="12,12"
    Columns="8" />

<!-- With callback -->
<colorpicker:DaisyColorGrid
    OnColorChanged="{Binding OnPaletteColorSelected}" />

ColorCollection Class

ColorCollection implements IList and provides:

// Create empty collection
var colors = new ColorCollection();

// Create from existing colors
var colors = new ColorCollection(new[] { Colors.Red, Colors.Green, Colors.Blue });

// Add colors
colors.Add(Colors.Yellow);
colors.AddRange(new[] { Colors.Cyan, Colors.Magenta });

// Find color index (with optional tolerance)
int index = colors.Find(Colors.Red);
int index = colors.Find(someColor, tolerance: 10);

// Static factory methods
ColorCollection.CreateNamedColors();
ColorCollection.CreateOffice2010();
ColorCollection.CreatePaint();
ColorCollection.CreateWebSafe();
ColorCollection.CreateGrayscale(16);

// Collection changed event
colors.CollectionChanged += (s, e) => RefreshUI();

Tips & Best Practices

Use Office 2010 palette for professional applications with theme-coordinated colors.
Use Paint palette for simple, familiar color selection.
Use Web Safe palette when targeting web-compatible colors.
Enable AutoAddColors to let users build a custom palette from their selections.
Adjust Columns to match your layout width (e.g., 8 for narrow panels, 16+ for wide areas).
Use smaller CellSize (12x12) for compact UIs, larger (20x20+) for touch interfaces.
The ColorIndex property is useful for tracking selection state in data binding scenarios.

Acknowledgments

This control is part of the Flowery.NET color picker suite, inspired by the Cyotek ColorPicker library (MIT License).
