DaisyColorPickerDialog

Overview

DaisyColorPickerDialog is a comprehensive color picker dialog that combines all color picker components into a single, professional interface.

Properties

Property	Type	Default	Description
`Color`	`Color`	`Red`	The selected color
`OriginalColor`	`Color`	`Red`	The original color (for comparison)
`CustomColors`	`ColorCollection?`	`null`	Custom colors collection
`ShowAlphaChannel`	`bool`	`true`	Show alpha channel controls
`ShowColorWheel`	`bool`	`true`	Show the color wheel
`ShowColorGrid`	`bool`	`true`	Show the color palette grid
`ShowColorEditor`	`bool`	`true`	Show the RGB/HSL editor
`ShowScreenColorPicker`	`bool`	`true`	Show the eyedropper tool
`PreserveAlphaChannel`	`bool`	`false`	Preserve alpha when selecting colors

Events

Event	Description
`PreviewColorChanged`	Fired when the selected color changes while the dialog is open (before OK is clicked)

Architecture

The dialog is a composite control that assembles several standalone color picker controls into a unified interface. Each component is a separate, reusable control with its own C# class and XAML theme:

File	Purpose
`DaisyColorPickerDialog.cs`	Dialog (a `FloweryDialogBase` shown through `FloweryDialogHost`), layout, history and coordination logic
`DaisyColorWheel.cs` + `.xaml`	Standalone color wheel control
`DaisyColorGrid.cs` + `.xaml`	Standalone color palette grid
`DaisyColorEditor.cs` + `.xaml`	Standalone RGB/HSL editor with sliders
`DaisyColorSlider.cs` + `.xaml`	Standalone color channel slider
`DaisyScreenColorPicker.cs` + `.xaml`	Standalone eyedropper tool

The dialog builds its UI programmatically in C# (not XAML) by creating instances of these controls and arranging them in a layout. This means:

Dialog layout (margins, spacing, dialog size) → edit DaisyColorPickerDialog.cs
Individual control appearance (slider heights, input widths) → edit the control's .xaml theme

Each component can also be used independently outside the dialog.

Dialog Components

The dialog integrates these components:

Component	Purpose
`DaisyColorWheel`	Visual hue/saturation selection
`DaisyColorSlider`	Lightness adjustment
`DaisyColorGrid`	Palette-based color selection
`DaisyColorEditor`	Precise RGB/HSL/Hex editing
`DaisyScreenColorPicker`	Pick colors from screen
Color Preview	Shows selected vs. original color

Methods

Member	Description
`static ShowAsync(XamlRoot xamlRoot, Color initialColor)`	Shows the dialog over the app content; returns the selected color, or `null` when cancelled
`static ShowAsync(XamlRoot, Color, bool showAlphaChannel, ColorCollection? customColors)`	Same, with alpha channel option and a custom color collection to show and extend
`ShowAsync(XamlRoot xamlRoot)`	Shows a configured dialog instance
`Undo()` / `Redo()`	Step through the colors chosen while the dialog is open (latest 50 values); also the two history buttons in the footer
`CanUndo` / `CanRedo`	Whether a history step is available
`Confirm()` / `Cancel()`	Close with or without a result; OK also adds the color to `CustomColors`

Escape and a click outside the dialog count as Cancel. Wheel, lightness slider, palette, screen picker, hex input and the RGB/HSL sliders all update the new-color preview and the returned color.

Quick Examples

// Show the dialog and use the result
var color = await DaisyColorPickerDialog.ShowAsync(XamlRoot, currentColor);
if (color is { } selected)
{
    ApplyColor(selected);
}

// Keep custom colors across openings, without alpha
private readonly ColorCollection _customColors = ColorCollection.CreateCustom(16);

var color = await DaisyColorPickerDialog.ShowAsync(XamlRoot, currentColor, showAlphaChannel: false, _customColors);

// Minimal dialog (wheel + editor only) with a live preview
var dialog = new DaisyColorPickerDialog
{
    Color = currentColor,
    OriginalColor = currentColor,
    ShowColorGrid = false,
    ShowScreenColorPicker = false
};
dialog.PreviewColorChanged += (s, e) => PreviewBorder.Background = new SolidColorBrush(e.Color);

var color = await dialog.ShowAsync(XamlRoot);

The native Windows dialog includes screen capture through DaisyScreenColorPicker when ShowScreenColorPicker is true.

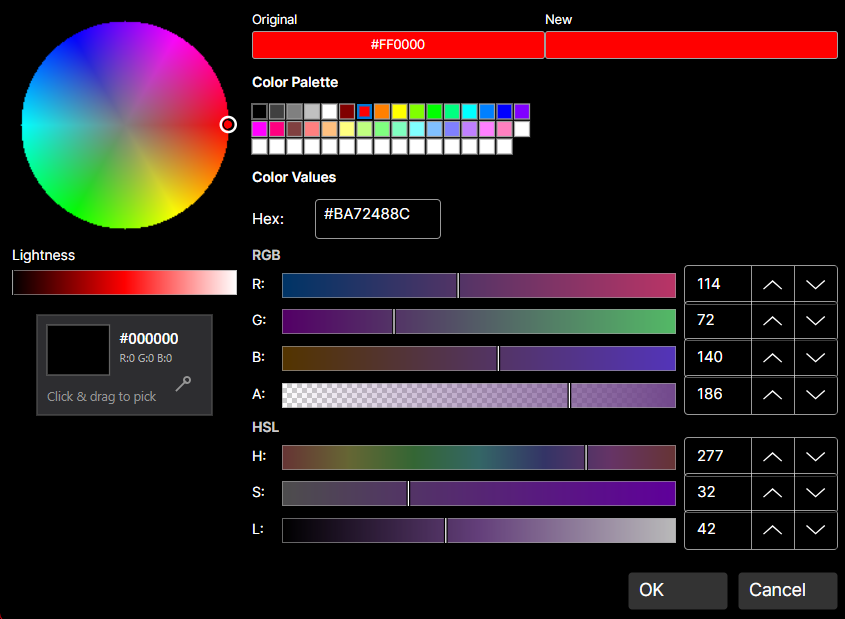

Typical Layout

┌─────────────────────────────────────────────────────────┐
│  ┌──────────────┐  ┌─────────────────────────────────┐  │
│  │              │  │  Color Grid (Palette)           │  │
│  │  Color       │  │  ████████████████████████████   │  │
│  │  Wheel       │  │  ████████████████████████████   │  │
│  │              │  │                                 │  │
│  │      ●       │  ├─────────────────────────────────┤  │
│  │              │  │  RGB Sliders                    │  │
│  └──────────────┘  │  R: ═══════════○═══════ [255]   │  │
│  ┌──┐              │  G: ═══○═══════════════ [128]   │  │
│  │L │              │  B: ○═════════════════ [0]      │  │
│  │i │              ├─────────────────────────────────┤  │
│  │g │              │  HSL Sliders                    │  │
│  │h │              │  H: ═══════════○═══════ [180]   │  │
│  │t │              │  S: ═══════════════○═══ [100]   │  │
│  │  │              │  L: ═══════○═══════════ [50]    │  │
│  └──┘              ├─────────────────────────────────┤  │
│                    │  Hex: #FF8000                 │  │
│  ┌────┬────┐       └─────────────────────────────────┘  │
│  │New │Orig│  [👁 Eyedropper]                           │
│  └────┴────┘                                            │
│                              [  OK  ]  [ Cancel ]       │
└─────────────────────────────────────────────────────────┘

Tips & Best Practices

Set OriginalColor to show a comparison between old and new colors.
Use PreviewColorChanged event for real-time preview updates in the parent UI.
Enable PreserveAlphaChannel when editing colors that should keep their transparency.
Hide components you don't need (e.g., ShowColorGrid="False") for a simpler interface.
The dialog returns true when OK is clicked, false or null when cancelled.
Custom colors persist across dialog sessions if you reuse the same ColorCollection.
Click the original color preview to revert to the starting color.

Acknowledgments

This dialog and its component controls are inspired by the Cyotek ColorPicker library (MIT License).
