Overview

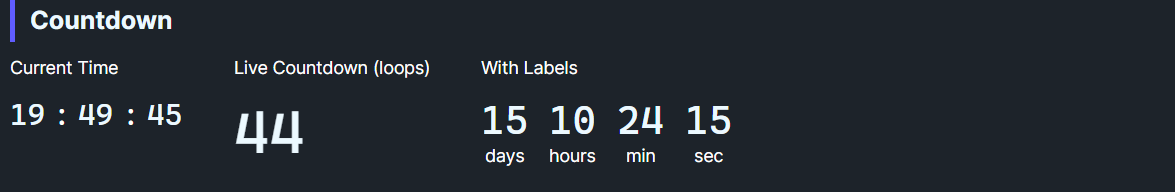

DaisyCountdown

DaisyCountdown is a versatile time display and timing control that can:

1. Display a single time segment (hours, minutes, or seconds) for use as a digit cell

2. Run a countdown timer from a specified duration to zero

3. Work as a stopwatch with lap recording and precise TimeSpan tracking

4. Show live clock units (hours/minutes/seconds of current time)

It supports TimeSpan-based timing with millisecond precision, lap recording with timestamps, and integrates seamlessly with DaisyClock for composite displays.

Modes & Properties

Operating Modes

Mode Description
Display Static display - shows Value or Duration
Countdown Timer - counts down from Duration to zero
Stopwatch Elapsed time - counts up from zero with lap support

Core Properties

Property Type Description
Value int (0-999) Displayed value for digit cell mode
Digits int (1-3) Number of digits to display
ClockUnit Hours/Minutes/Seconds/None When set, shows that component of current time
Mode CountdownMode Operating mode: Display, Countdown, or Stopwatch

TimeSpan-Based Timing

Property Type Description
Duration TimeSpan Starting duration for countdown mode
Remaining TimeSpan Time remaining (read-only)
Elapsed TimeSpan Elapsed time in stopwatch mode (read-only)
IsRunning bool Whether timer/stopwatch is active

Simple Countdown

Property Type Description
IsCountingDown bool Starts simple countdown (decrements Value)
Interval TimeSpan Tick interval (default 1s)
Loop bool When true, resets to LoopFrom at zero
LoopFrom int Value to reset to when looping

Events

Event Description
CountdownCompleted Simple countdown (Value-based) reached zero
TimerCompleted TimeSpan-based countdown reached zero
Tick Raised on each timer tick with current time value
LapRecorded A lap was recorded (stopwatch mode)

Lap Recording

DaisyCountdown supports lap recording in Stopwatch mode:

// Access recorded laps
foreach (var lap in countdown.Laps)
{
    Console.WriteLine($"Lap {lap.Number}: {lap.LapDuration:mm\\:ss\\.fff}");
    Console.WriteLine($"  Total: {lap.TotalElapsed:hh\\:mm\\:ss}");
    Console.WriteLine($"  Recorded at: {lap.Timestamp:HH:mm:ss}");
}

// Record a new lap
countdown.RecordLap();

// Clear all laps
countdown.ClearLaps();

The LapTime class contains:

Quick Examples

<!-- Live clock: HH:MM:SS using DaisyJoin -->
<daisy:DaisyJoin>
    <controls:DaisyCountdown ClockUnit="Hours" Digits="2" Size="Large" />
    <TextBlock Text=":" FontSize="24" VerticalAlignment="Center" />
    <controls:DaisyCountdown ClockUnit="Minutes" Digits="2" Size="Large" />
    <TextBlock Text=":" FontSize="24" VerticalAlignment="Center" />
    <controls:DaisyCountdown ClockUnit="Seconds" Digits="2" Size="Large" />
</daisy:DaisyJoin>

<!-- Simple looping countdown (59...0...59...) -->
<controls:DaisyCountdown Value="59"
                         Digits="2"
                         IsCountingDown="True"
                         Loop="True"
                         LoopFrom="59"
                         Size="Large" />

<!-- TimeSpan-based countdown timer (5 minutes) -->
<controls:DaisyCountdown x:Name="Timer"
                         Mode="Countdown"
                         Duration="0:05:00"
                         ShowHours="False"
                         ShowSeconds="True"
                         Size="Large" />

<!-- Stopwatch with milliseconds -->
<controls:DaisyCountdown x:Name="Stopwatch"
                         Mode="Stopwatch"
                         ShowMilliseconds="True"
                         Size="Large" />

Code-Behind Control

// Start/Pause/Reset work for both Countdown and Stopwatch modes
Timer.Start();
Timer.Pause();
Timer.Reset();

// Set duration from string (multiple formats supported)
Timer.TrySetDuration("5:30");      // 5 minutes 30 seconds
Timer.TrySetDuration("PT5M30S");   // ISO 8601 format
Timer.TrySetDuration("330");       // 330 seconds

// Get display values in various formats
var display = Timer.GetDisplayString();           // "05:30.000"
var milliseconds = Timer.GetDisplayMilliseconds(); // 330000
var seconds = Timer.GetDisplaySeconds();           // 330.0

// Lap recording (Stopwatch mode)
Stopwatch.RecordLap();
foreach (var lap in Stopwatch.Laps)
{
    Debug.WriteLine($"Lap {lap.Number}: {lap.LapDuration}");
}

// Event handling
Timer.TimerCompleted += (s, e) => ShowNotification("Timer done!");
Timer.Tick += (s, remaining) => UpdateProgress(remaining);
Stopwatch.LapRecorded += (s, lap) => AddLapToList(lap);

Data Exchange

DaisyCountdown works with FloweryTimeHelpers for data exchange:

// Convert to portable formats
var ms = FloweryTimeHelpers.ToMilliseconds(timer.Elapsed);
var iso = FloweryTimeHelpers.ToIso8601Duration(timer.Elapsed);

// Parse from strings
if (FloweryTimeHelpers.TryParseDurationPrecise("01:30:45.500", out var duration))
    timer.Duration = duration;

// Lap timestamps are DateTimeOffset for serialization
var lapJson = JsonSerializer.Serialize(stopwatch.Laps);

Accessibility Support

DaisyCountdown includes built-in accessibility for screen readers via the AccessibleText property.

Property Type Default Description
AccessibleText string "Countdown" Context text for screen readers
<!-- Custom context: announces "Time remaining: 10" -->
<controls:DaisyCountdown Value="10" AccessibleText="Time remaining" IsCountingDown="True" />

<!-- With unit: announces "Session expires in: 5 minutes" -->
<controls:DaisyCountdown ClockUnit="Minutes" AccessibleText="Session expires in" Digits="2" />

Tips & Best Practices
